Air Venturi Carbon Fiber Charging Station, 4500 psi, 98 cu ft

$1,374.18

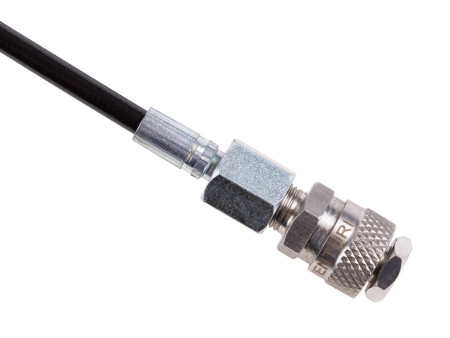

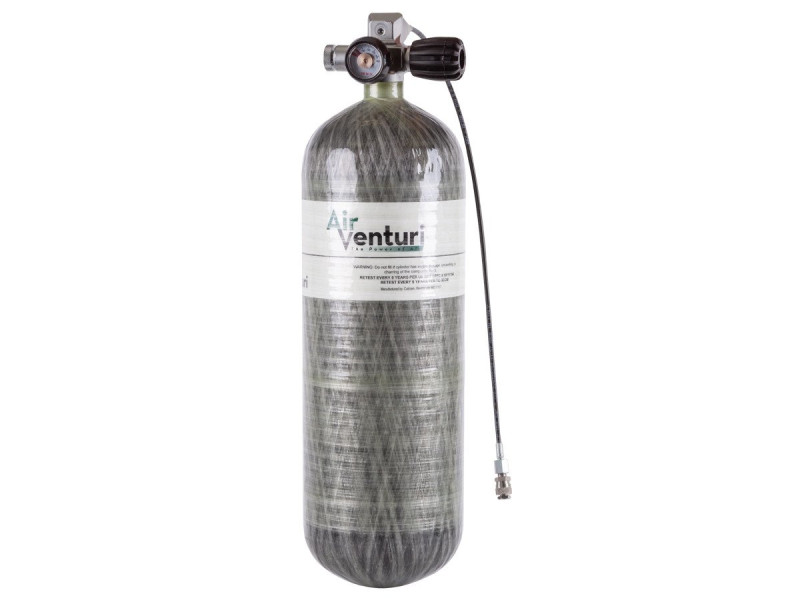

Air Venturi Carbon Fiber PCP Charging Station   Assembly includes: 98 cu. ft. carbon fiber tank, 4,500 psi DIN 300 bar PCP charging station DIN 300 bar valve with burst disc Inline pressure gauge 0-400 BAR    Charging Station: 4,500 psi max pressure 24 in. microbore hose with 1/8" BSPP Male and female threaded ends, each 1/8" BSPP Stainless steel female quick-disconnect coupling attached to output end of hose Includes test plug for checking pressure remaining in the tank   Specifications: Carbon fiber filament wound over aluminum bladder 98 cu. ft. air capacity 4,500 psi max pressure DOT-approved / DOT-SP 11194 13 lbs. dry weight 7.5" wide 25" tall to top of valve Empty weight 12.95 lbs Filled weight 19.1 lbs
Quantity
block Out-of-Stock

local_shipping Estimate Shipping arrow_drop_down

There are not enough products in stock

Loading...

Air Venturi Carbon Fiber PCP Charging Station   Assembly includes: 98 cu. ft. carbon fiber tank, 4,500 psi DIN 300 bar PCP charging station DIN 300 bar valve with burst disc Inline pressure gauge 0-400 BAR    Charging Station: 4,500 psi max pressure 24 in. microbore hose with 1/8" BSPP Male and female threaded ends, each 1/8" BSPP Stainless steel female quick-disconnect coupling attached to output end of hose Includes test plug for checking pressure remaining in the tank   Specifications: Carbon fiber filament wound over aluminum bladder 98 cu. ft. air capacity 4,500 psi max pressure DOT-approved / DOT-SP 11194 13 lbs. dry weight 7.5" wide 25" tall to top of valve Empty weight 12.95 lbs Filled weight 19.1 lbs
Air Venturi
PY-A-5905

Data sheet

Weight
13.0 lbs
Operating Pressure
4500 PSI / 310 BAR

Specific References

EAN13
0810044825312
